Description

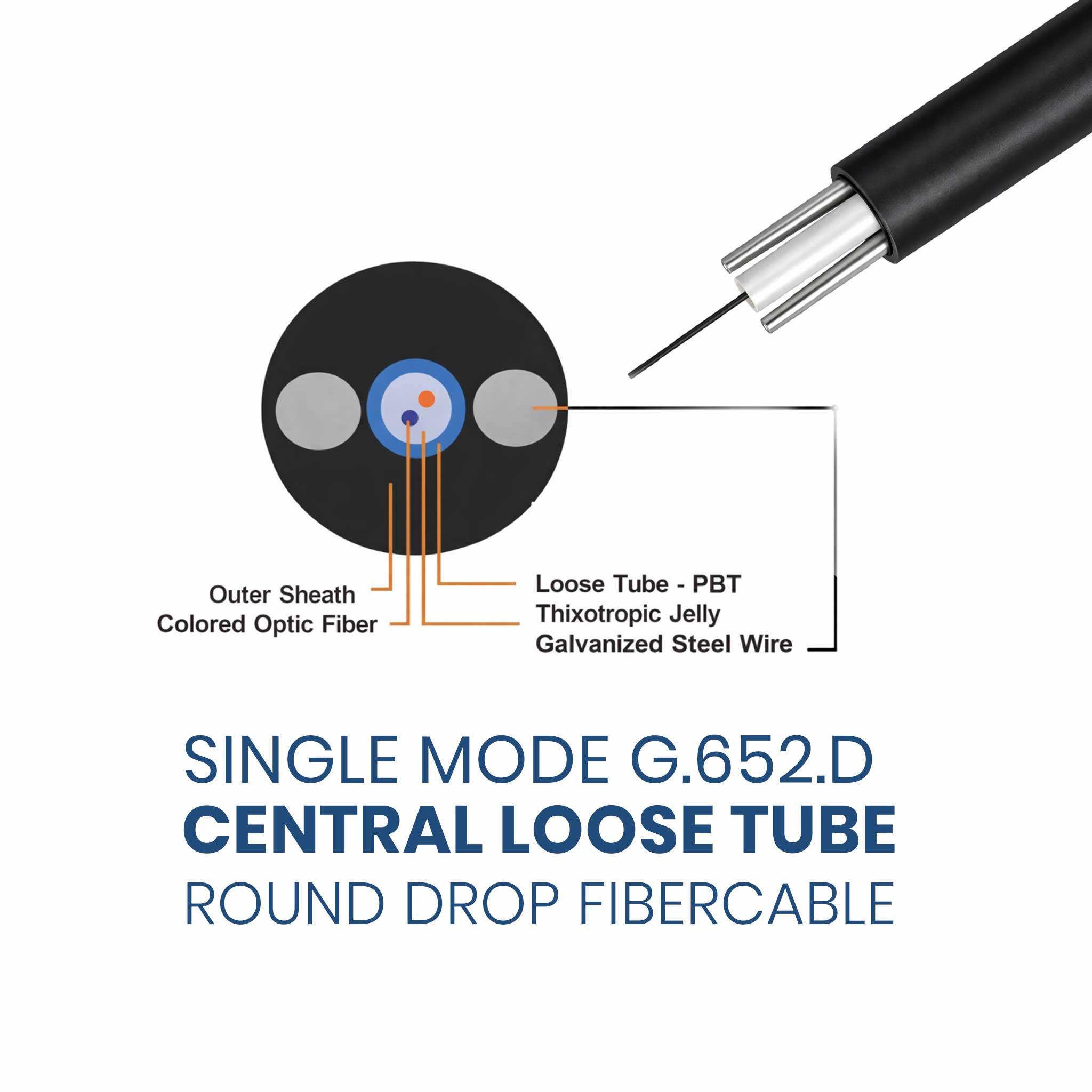

xLitech SM G.652.D Central Loose Tube Round Drop Cable is the 2 fibre unarmoured round version of our CLT (Central Loose Tube) Type optical fibre cable, a compact single-mode drop cable for FTTH and last-mile connections. Rs 40,800 per 1 km reel (2 km Rs 81,600; 4 km Rs 163,200), prices per reel and include tax. The 2 fibres sit in a gel-filled PBT loose tube, protected by two parallel galvanised steel strength members and a tough black polyethylene sheath.
Key Features:
- 2 fibres, unarmoured round: Single-mode ITU-T G.652.D fibre in one central loose tube
- Robust strength members: 2 parallel galvanised steel wires (2 parallel FRP on request)
- Compact round profile: Nominal outer diameter 5.0–5.5 mm
- Tested to IEC 60794: Mechanical and environmental tests per IEC 60794
Applications:
- FTTH / FTTx subscriber drops
- Last-mile building entry
- Short aerial and duct drop runs
Technical Specifications
| Construction | |
| Fibre count | 2 fibres (unarmoured, round type) |
| Fibre type | Single-mode, ITU-T G.652.D |
| Fibre colours | Blue, Orange, Green, Brown, Slate (Grey), White, Red, Black, Yellow, Violet, Rose, Aqua (ANSI/TIA-598) |
| Loose tubes | 1 (PBT (polybutylene terephthalate), filled with thixotropic jelly) |
| Strength members | 2 × galvanised steel wires, parallel, one on each side of the tube (2 × FRP rods on request) |
| Outer sheath | Medium / high density polyethylene (MDPE / HDPE), black |
| Outer diameter (nominal) | 5.0 – 5.5 mm |
| Sheath marking | Litech Pakistan (Private) Limited – No. of fibres – FTTH Round Drop OFC – Year of manufacture – Length marking |
| Packing | Supplied on a suitable, strong reel |
| Cutting length | 1 km, 2 km or 4 km reels |
| Optical | |
| Fibre | Corning® SMF-28e+® single-mode fibre, ITU-T G.652.D |
| Fibre colour sequence | As per ANSI/TIA-598: 1 Blue, 2 Orange, 3 Green, 4 Brown, 5 Slate, 6 White, 7 Red, 8 Black, 9 Yellow, 10 Violet, 11 Rose, 12 Aqua |
| Mode field diameter | 9.2 ± 0.4 µm @ 1310 nm; 10.4 ± 0.5 µm @ 1550 nm |
| Cladding diameter | 125.0 ± 0.7 µm |
| Coating diameter | 242 ± 5 µm |
| Core-clad concentricity error | ≤ 0.5 µm |
| Cladding non-circularity | ≤ 0.7% |
| Cable cut-off wavelength | ≤ 1260 nm |
| Zero-dispersion wavelength | 1304 – 1324 nm |
| Zero-dispersion slope | ≤ 0.092 ps/(nm²·km) |
| Chromatic dispersion | ≤ 3.5 ps/(nm·km) @ 1310 nm; ≤ 18 ps/(nm·km) @ 1550 nm |
| Cabled attenuation (average) | ≤ 0.35 dB/km @ 1310 nm; ≤ 0.21 dB/km @ 1550 nm |
| Polarisation mode dispersion (PMD) | ≤ 0.2 ps/√km |
| Mechanical & environmental | |
| Maximum tensile load | 1000 N |
| Crush resistance | 2200 N/100 mm (short-term) / 1000 N/100 mm (long-term) |
| Impact resistance | 0.5 kg dropped from 1 m height |
| Repeated bending | 10 cycles |
| Torsion | 5 cycles, twist angle ± 180° |
| Minimum bending radius | 10 × cable diameter (without load); 20 × cable diameter (with load) |
| Temperature range | -10 °C to +70 °C |
| Test standard | IEC 60794-1-21 and IEC 60794-1-22 |
| Manufacturer | |
| Manufacturer | Litech Pakistan (Private) Limited |
| Country of origin | Islamic Republic of Pakistan |
| Quality management system | ISO 9001:2015 certified |
📄 Download TDS (PDF)📘 Download Product Profile (PDF)
Rs 40,800 per 1 km reel. Available in 1 km, 2 km or 4 km reels: choose your reel length above and add to cart. WhatsApp +92 313 7776766 for bulk or custom lengths, or email info@litech.com.pk.
