Other sizes on request via WhatsApp +92 313 7776766
All fibre counts
Minimum order one reel. Quantity = number of reels. Prices in PKR.
Description

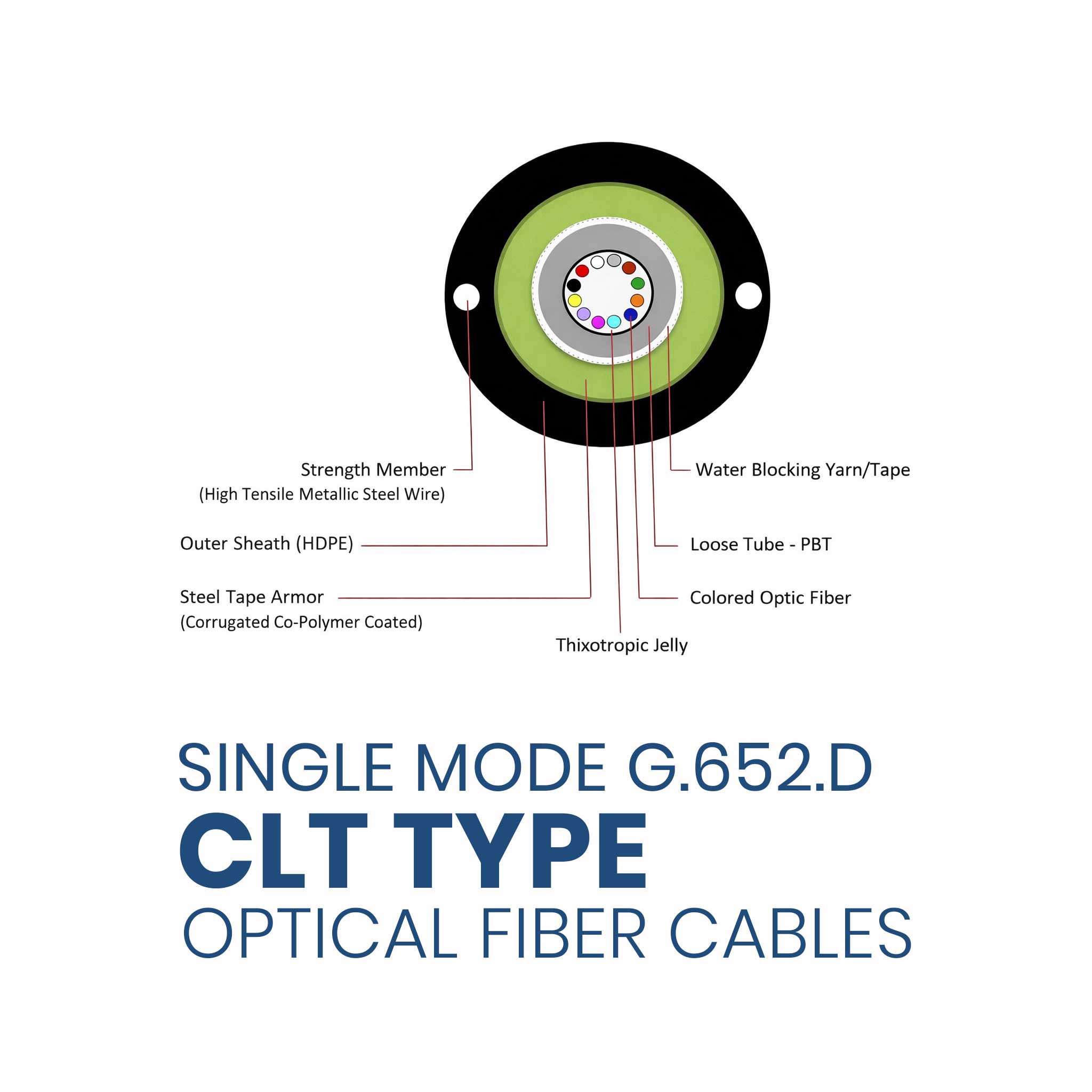

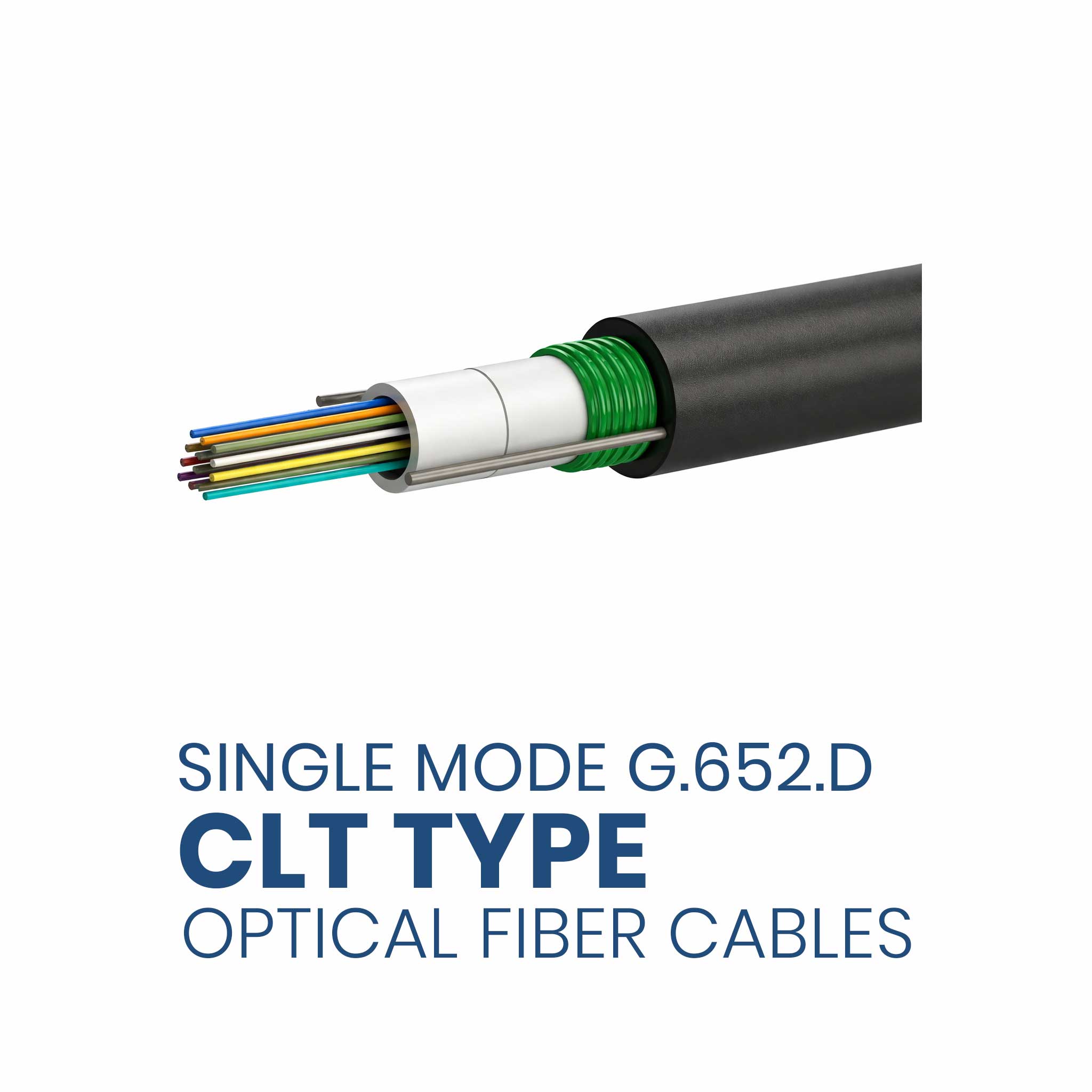

xLitech Single Mode G.652.D CLT (Central Loose Tube) Optical Fiber Cable is a compact cable for aerial and outside-plant routes. 2 fibre comes unarmoured in two types, round or flat; 4, 6, 8, 12 and 24 fibre come armoured, round only. Sold on 1 km, 2 km or 4 km reels; prices are per reel and include tax. A gel-filled central loose tube is protected by corrugated steel tape, two longitudinal steel strength members and an MDPE / HDPE jacket.
Key Features:
- Armoured construction (4F to 24F): Corrugated steel tape with 2 phosphate-coated steel wires placed opposite each other
- 2 to 24 fibres: ITU-T G.652.D single-mode fibre in a central loose tube
- Small and light: 7.5 mm nominal diameter (8.5 mm for 24 fibres; 9.5 mm on request)
- Good crush resistance: Controlled fibre excess length for mechanical and environmental stability
Applications:
- Aerial installation
- Junction communication systems
- Subscriber network systems
Technical Specifications
| Construction | |
| Fibre count | 2F unarmoured (round or flat); 4, 6, 8, 12 or 24F armoured round |
| Reel length | 1 km, 2 km or 4 km |
| Fibre type | Single-mode, ITU-T G.652.D |
| Loose tube | PBT (polybutylene terephthalate), filled with thixotropic jelly |
| Core water blocking | Dry core (water-blocking yarn / tape) |
| Strength members | 2 × phosphated high-tensile steel wires, placed longitudinally opposite each other alongside the loose tube |
| Armouring | Corrugated steel tape, copolymer coated (4F to 24F; 2F is unarmoured) |
| Outer sheath | Medium / high density polyethylene (MDPE / HDPE) |
| Outer diameter (nominal) | 7.5 mm (8.5 mm for 24 fibres); 9.5 mm on request |
| Sheath marking | Hot-foil embossed or inkjet printing |
| Optical | |
| Fibre | Corning® SMF-28e+® single-mode fibre, ITU-T G.652.D |
| Fibre colour sequence | As per ANSI/TIA-598: 1 Blue, 2 Orange, 3 Green, 4 Brown, 5 Slate, 6 White, 7 Red, 8 Black, 9 Yellow, 10 Violet, 11 Rose, 12 Aqua |
| Mode field diameter | 9.2 ± 0.4 µm @ 1310 nm; 10.4 ± 0.5 µm @ 1550 nm |
| Cladding diameter | 125.0 ± 0.7 µm |
| Coating diameter | 242 ± 5 µm |
| Core-clad concentricity error | ≤ 0.5 µm |
| Cladding non-circularity | ≤ 0.7% |
| Cable cut-off wavelength | ≤ 1260 nm |
| Zero-dispersion wavelength | 1304 – 1324 nm |
| Zero-dispersion slope | ≤ 0.092 ps/(nm²·km) |
| Chromatic dispersion | ≤ 3.5 ps/(nm·km) @ 1310 nm; ≤ 18 ps/(nm·km) @ 1550 nm |
| Cabled attenuation (average) | ≤ 0.35 dB/km @ 1310 nm; ≤ 0.21 dB/km @ 1550 nm |
| Polarisation mode dispersion (PMD) | ≤ 0.2 ps/√km |
| Mechanical | |
| Maximum tensile load | 1000 N |
| Crush resistance | 500 N/100 mm |
| Minimum bending radius | 10 × cable diameter (without load); 20 × cable diameter (with load) |
| Temperature range | -20 °C to +70 °C |
| Manufacturer | |
| Manufacturer | Litech Pakistan (Private) Limited |
| Country of origin | Islamic Republic of Pakistan |
| Quality management system | ISO 9001:2015 certified |
📄 Download TDS (PDF)📘 Download Product Profile (PDF)
Available in 1 km, 2 km or 4 km reels: choose your options above and add to cart. WhatsApp +92 313 7776766 for bulk or custom lengths, or email info@litech.com.pk.
Delivery & Returns
xDelivery: Free delivery on all orders within Pakistan. Orders are usually delivered within 5–7 working days after payment is received.
Payment: Bank transfer only.
Returns: Unused items in original packaging can be returned within 14 days of delivery. Cut-to-length cables cannot be returned. Refunds are paid within 7 working days after approval. The customer pays return delivery unless the item is faulty or wrong.
Warranty: Manufacturer's warranty applies. Fusion splicers are covered by INNO Instruments' warranty terms.
Questions? WhatsApp +92 313 7776766 or email info@litech.com.pk.
Litech optical fibre cables
Engineered layer by layer.
Pick a cable. Drag to turn it, tap a numbered point to look inside, or tap the cable to fire the laser.
Loading 3D view
The 3D view could not load on this device. The layer guide still works.
Illustration based on the datasheet cross-section · not to scale
Cable 1 of 9
Single Mode G.652.D CLT Type Optical Fiber Cable
Central loose tube with 12 fibres, as drawn in the datasheet
Pick a layer to see what it is made of and what it does.
2F–24FFibre count
1000NMaximum tensile load
500N/100 mmCrush resistance
−20 to +70°CTemperature range
