Other sizes on request via WhatsApp +92 313 7776766
Supplied in 4 km reels. Prices on request.
Description

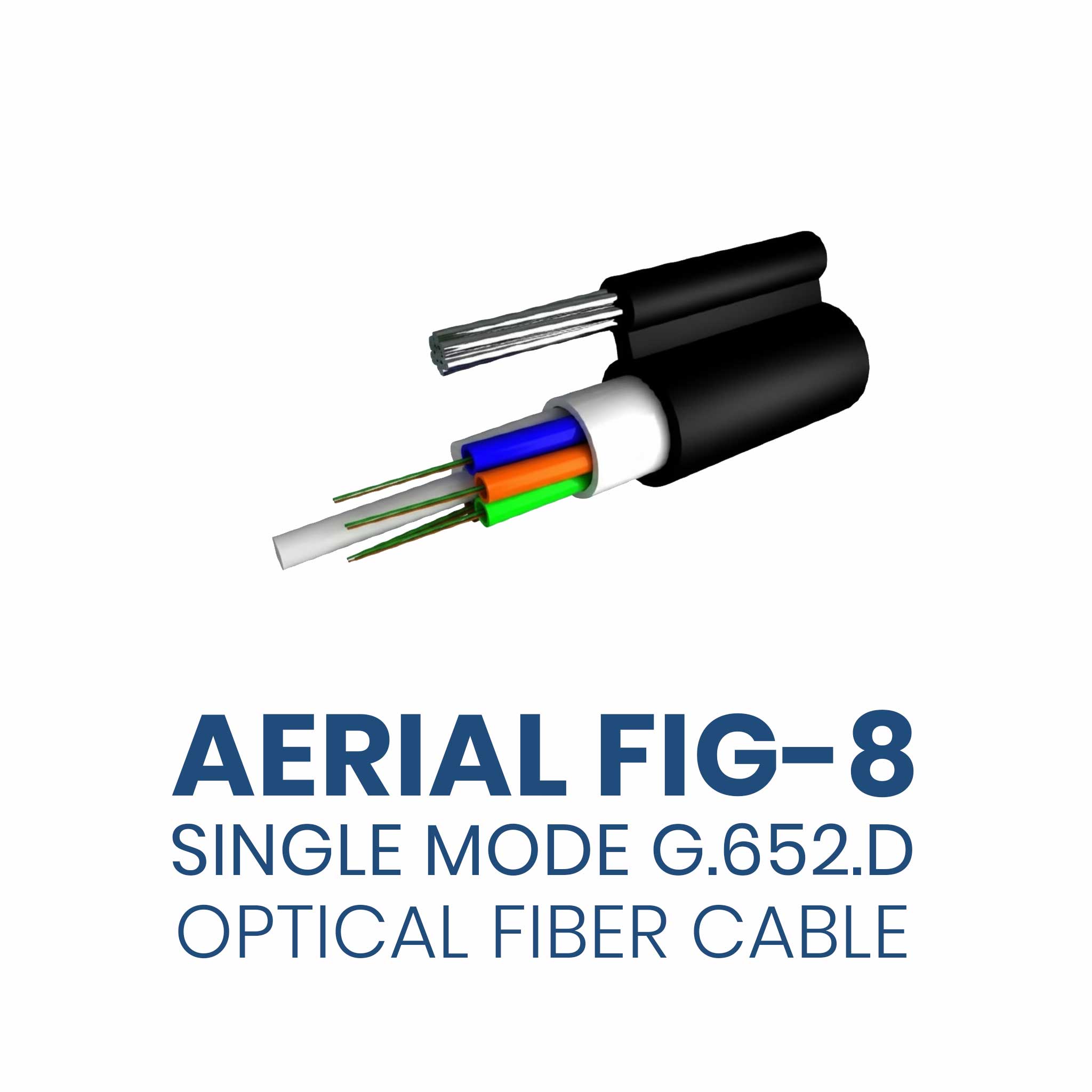

xLitech Single Mode G.652.D Aerial Figure-8 Optical Fiber Cable is a self-supporting cable for pole-to-pole aerial routes. An integrated galvanised steel messenger wire carries the full tensile load, allowing simple one-step installation and stable performance over a wide temperature range.
Key Features:
- Self-supporting: Integrated galvanised steel messenger wire takes the tensile load
- Up to 96 fibres: ITU-T G.652.D single-mode fibre, 12 fibres per loose tube
- Dual water blocking: Dry-block design with water-blocking yarns and tapes
- Compact and light: Small diameter, light weight, quick installation
Applications:
- Aerial installation on poles
- Data, voice and video transmission
- Access and distribution networks
Technical Specifications

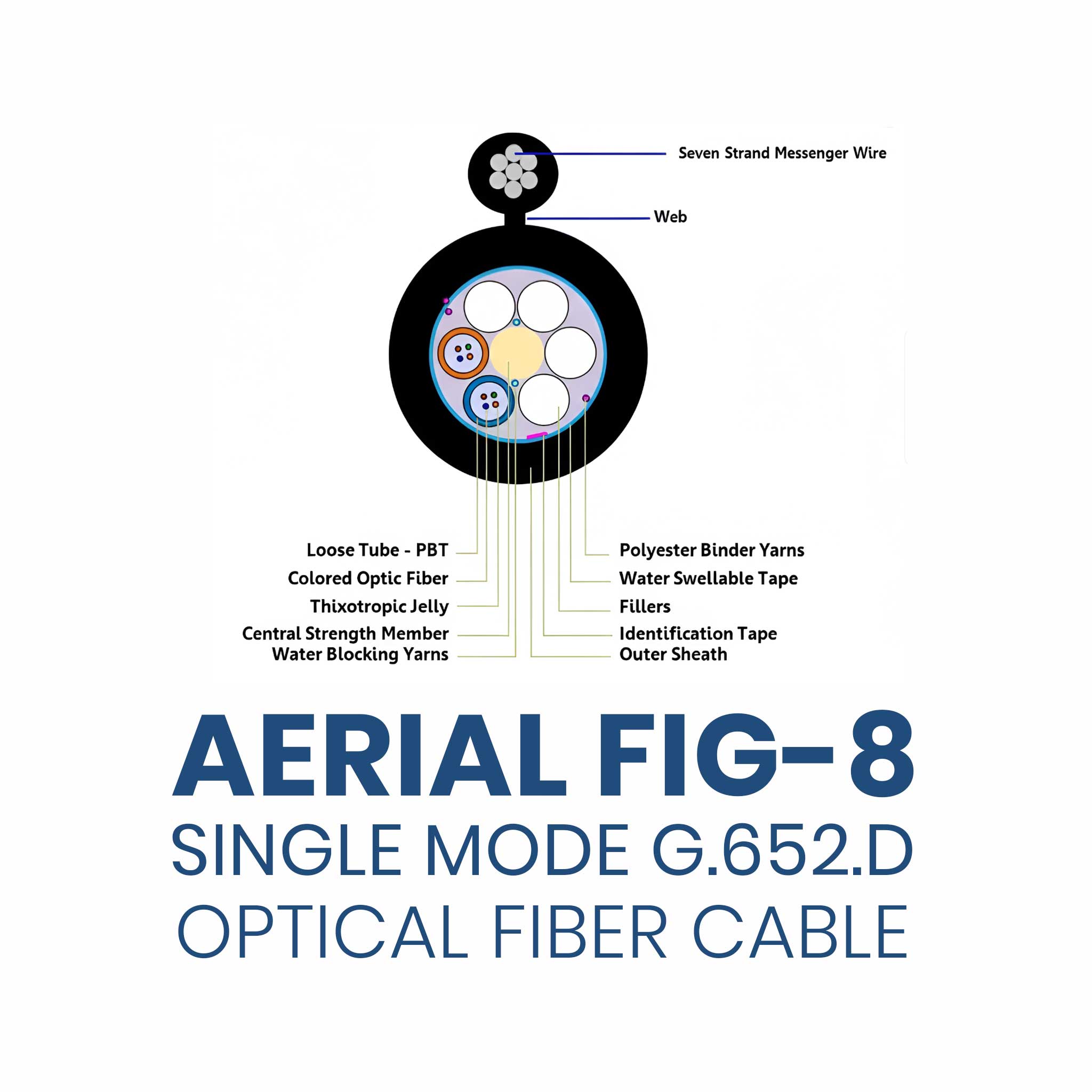

| Construction | |
| Fibre count | Up to 96 fibres (datasheet covers 12, 24, 36, 48 and 72 fibres) |
| Fibre type | Single-mode, ITU-T G.652.D |
| Fibres per loose tube | 12 |
| Loose tubes | 1, 2, 3, 4 or 6 (for 12, 24, 36, 48 or 72 fibres) |
| Loose tube | PBT (polybutylene terephthalate), filled with thixotropic jelly |
| Central strength member | FRP (fibre reinforced plastic) |
| Fillers | 5, 4, 3, 2 or 0 (for 12, 24, 36, 48 or 72 fibres), polyethylene (PE) |
| Core water blocking | Dry-block design (water-blocking yarns / tapes) |
| Messenger wire | Galvanized steel wire strand (7 wires) |
| Outer sheath | Medium / high density polyethylene (MDPE / HDPE) |
| Sheath marking | Hot-foil embossed or inkjet printing |
| Reel length | 4 km reels |
| Optical | |
| Fibre | Corning® SMF-28e+® single-mode fibre, ITU-T G.652.D |
| Fibre colour sequence | As per ANSI/TIA-598: 1 Blue, 2 Orange, 3 Green, 4 Brown, 5 Slate, 6 White, 7 Red, 8 Black, 9 Yellow, 10 Violet, 11 Rose, 12 Aqua |
| Mode field diameter | 9.2 ± 0.4 µm @ 1310 nm; 10.4 ± 0.5 µm @ 1550 nm |
| Cladding diameter | 125.0 ± 0.7 µm |
| Coating diameter | 242 ± 5 µm |
| Core-clad concentricity error | ≤ 0.5 µm |
| Cladding non-circularity | ≤ 0.7% |
| Cable cut-off wavelength | ≤ 1260 nm |
| Zero-dispersion wavelength | 1304 – 1324 nm |
| Zero-dispersion slope | ≤ 0.092 ps/(nm²·km) |
| Chromatic dispersion | ≤ 3.5 ps/(nm·km) @ 1310 nm; ≤ 18 ps/(nm·km) @ 1550 nm |
| Cabled attenuation (average) | ≤ 0.35 dB/km @ 1310 nm; ≤ 0.21 dB/km @ 1550 nm |
| Polarisation mode dispersion (PMD) | ≤ 0.2 ps/√km |
| Mechanical | |
| Maximum tensile load | 3000 N |
| Crush resistance | 2500 N/100 mm |
| Minimum bending radius | 10 × cable diameter (without load); 20 × cable diameter (with load) |
| Temperature range | -20 °C to +70 °C |
| Manufacturer | |
| Manufacturer | Litech Pakistan (Private) Limited |
| Country of origin | Islamic Republic of Pakistan |
| Quality management system | ISO 9001:2015 certified |
📄 Download TDS (PDF)📘 Download Product Profile (PDF)
Supplied in 4 km reels: choose your options above and ask on WhatsApp for a price. WhatsApp +92 313 7776766 for bulk or custom lengths, or email info@litech.com.pk.
Delivery & Returns
xDelivery: Free delivery on all orders within Pakistan. Orders are usually delivered within 5–7 working days after payment is received.
Payment: Bank transfer only.
Returns: Unused items in original packaging can be returned within 14 days of delivery. Cut-to-length cables cannot be returned. Refunds are paid within 7 working days after approval. The customer pays return delivery unless the item is faulty or wrong.
Warranty: Manufacturer's warranty applies. Fusion splicers are covered by INNO Instruments' warranty terms.
