Other sizes on request via WhatsApp +92 313 7776766
Supplied in 4 km reels. Prices on request.
Description

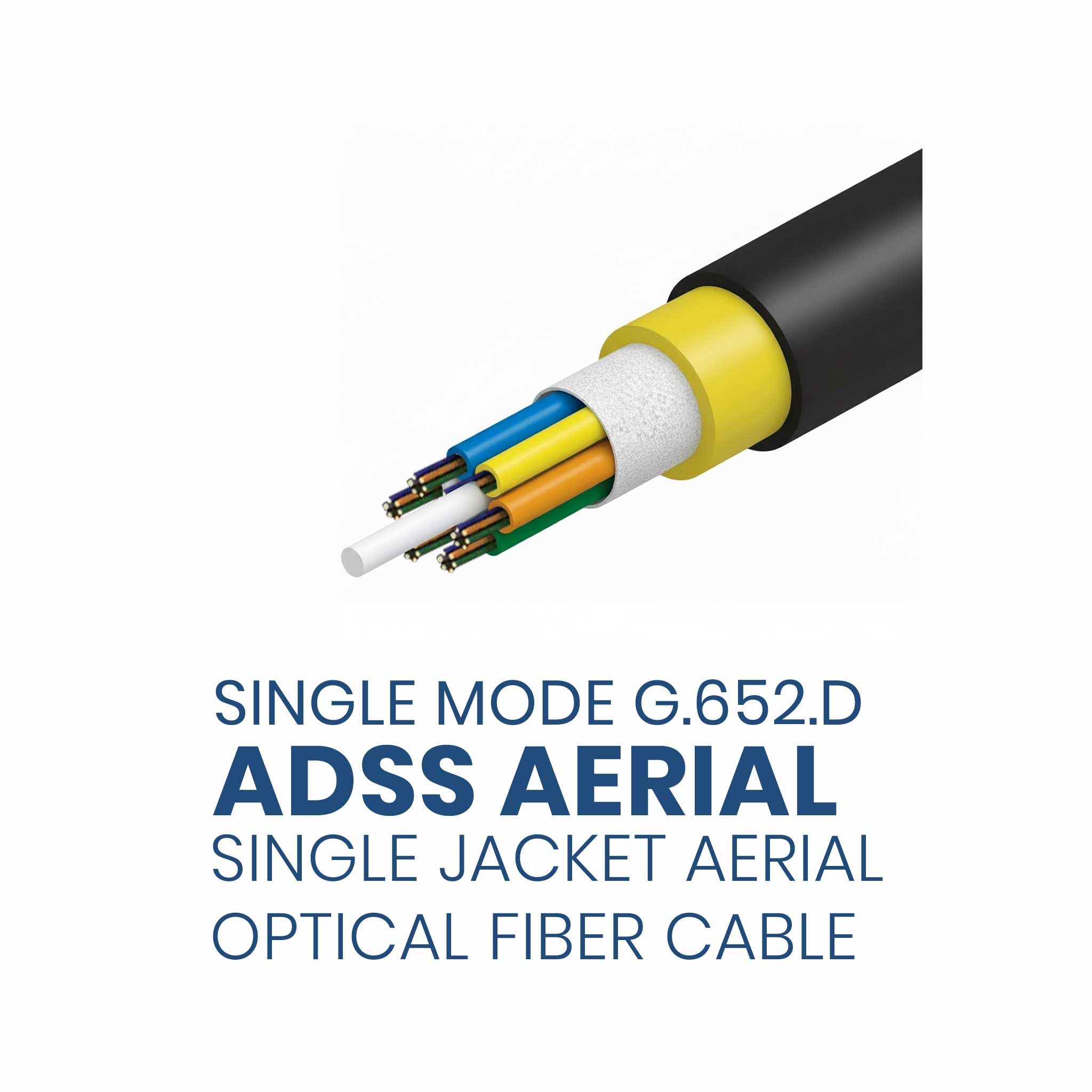

xLitech Single Mode G.652.D ADSS (All-Dielectric Self-Supporting) Single Jacket Aerial Optical Fiber Cable is designed for aerial routes, including power transmission and distribution networks. Its all-dielectric construction needs no shielding or grounding, which keeps installation costs down.
Key Features:
- All-dielectric: No metal components; immune to electromagnetic interference, suitable near power lines
- Aramid yarn strength: Peripheral aramid layer under a single PE jacket
- 2 to 144 fibres: ITU-T G.652.D single-mode fibre in gel-filled loose tubes
- Low wind and ice loading: Round profile reduces sag and tensile load
Applications:
- Aerial installation on power and telecom poles
- Power utility networks
- Junction communication systems
- Subscriber network systems

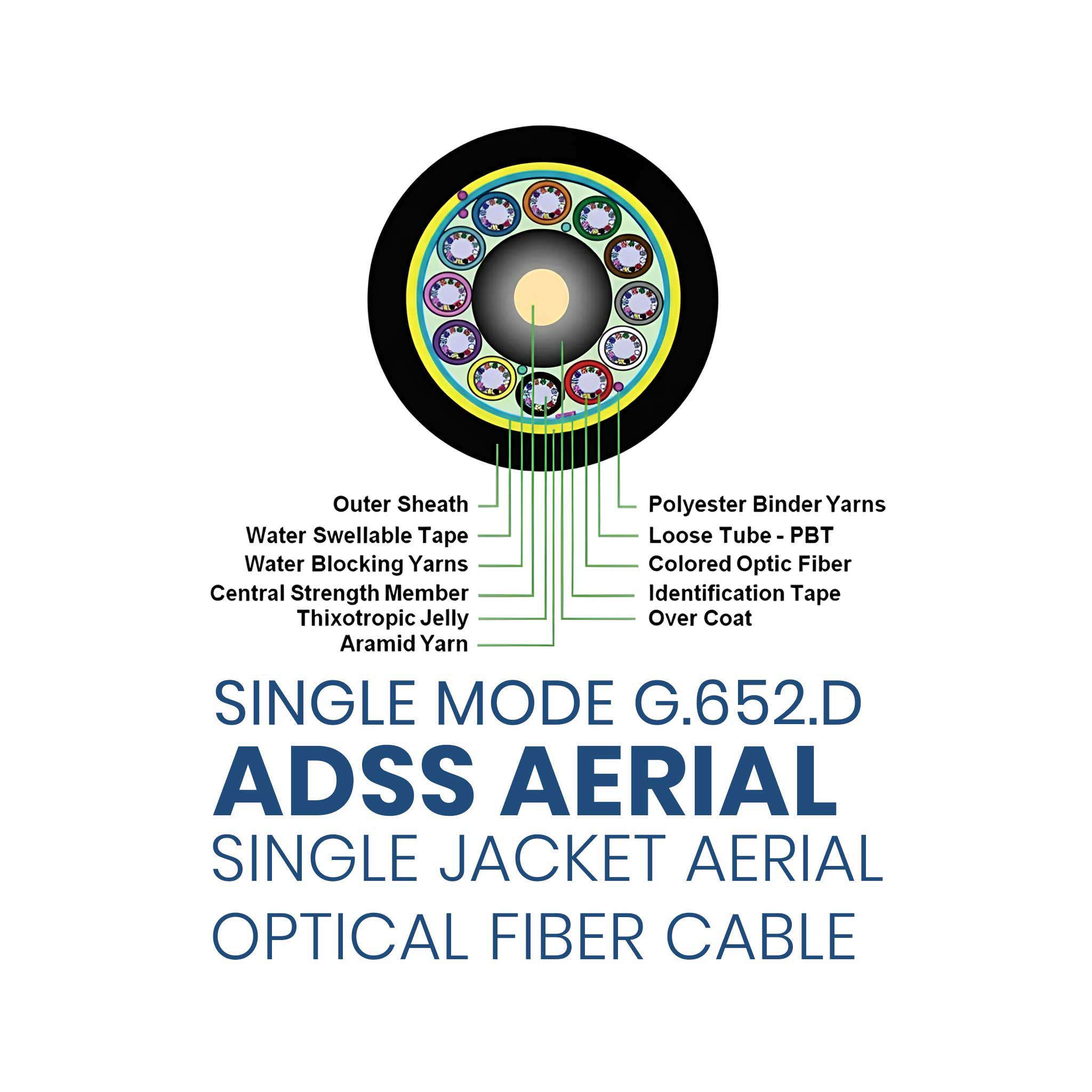

Technical Specifications
| Construction | |
| Fibre count | 2 to 144 fibres |
| Fibre type | Single-mode, ITU-T G.652.D |
| Loose tube | PBT (polybutylene terephthalate), filled with thixotropic jelly |
| Central strength member | FRP (fibre reinforced plastic) |
| Filler | Polyethylene (PE) |
| Core water blocking | Dry-block design (water-blocking yarns / tapes) |
| Peripheral strength member | Aramid yarn |
| Outer sheath | Medium / high density polyethylene (MDPE / HDPE) (single jacket) |
| Sheath marking | Hot-foil embossed or inkjet printing |
| Reel length | 4 km reels |
| Optical | |
| Fibre | Corning® SMF-28e+® single-mode fibre, ITU-T G.652.D |
| Fibre colour sequence | As per ANSI/TIA-598: 1 Blue, 2 Orange, 3 Green, 4 Brown, 5 Slate, 6 White, 7 Red, 8 Black, 9 Yellow, 10 Violet, 11 Rose, 12 Aqua |
| Mode field diameter | 9.2 ± 0.4 µm @ 1310 nm; 10.4 ± 0.5 µm @ 1550 nm |
| Cladding diameter | 125.0 ± 0.7 µm |
| Coating diameter | 242 ± 5 µm |
| Core-clad concentricity error | ≤ 0.5 µm |
| Cladding non-circularity | ≤ 0.7% |
| Cable cut-off wavelength | ≤ 1260 nm |
| Zero-dispersion wavelength | 1304 – 1324 nm |
| Zero-dispersion slope | ≤ 0.092 ps/(nm²·km) |
| Chromatic dispersion | ≤ 3.5 ps/(nm·km) @ 1310 nm; ≤ 18 ps/(nm·km) @ 1550 nm |
| Cabled attenuation (average) | ≤ 0.35 dB/km @ 1310 nm; ≤ 0.21 dB/km @ 1550 nm |
| Polarisation mode dispersion (PMD) | ≤ 0.2 ps/√km |
| Mechanical | |
| Maximum tensile load | 5000 N |
| Crush resistance | 2500 N/100 mm |
| Minimum bending radius | 10 × cable diameter (without load); 20 × cable diameter (with load) |
| Temperature range | -20 °C to +70 °C |
| Manufacturer | |
| Manufacturer | Litech Pakistan (Private) Limited |
| Country of origin | Islamic Republic of Pakistan |
| Quality management system | ISO 9001:2015 certified |
📄 Download TDS (PDF)📘 Download Product Profile (PDF)
Supplied in 4 km reels: choose your options above and ask on WhatsApp for a price. WhatsApp +92 313 7776766 for bulk or custom lengths, or email info@litech.com.pk.
Delivery & Returns
xDelivery: Free delivery on all orders within Pakistan. Orders are usually delivered within 5–7 working days after payment is received.
Payment: Bank transfer only.
Returns: Unused items in original packaging can be returned within 14 days of delivery. Cut-to-length cables cannot be returned. Refunds are paid within 7 working days after approval. The customer pays return delivery unless the item is faulty or wrong.
Warranty: Manufacturer's warranty applies. Fusion splicers are covered by INNO Instruments' warranty terms.
Questions? WhatsApp +92 313 7776766 or email info@litech.com.pk.
